Standard series

Design and calculation guide

In consequence of the inclination of the tooth faces, an axial force Fa must be applied, due to the peripheral force Fu of the driving torque M.

Design and calculation guide

This axial force must be absorbed with a safety coefficient of v = 1,8 to 3, due to outside systems which tend to compress the couplings.

Design and calculation guide

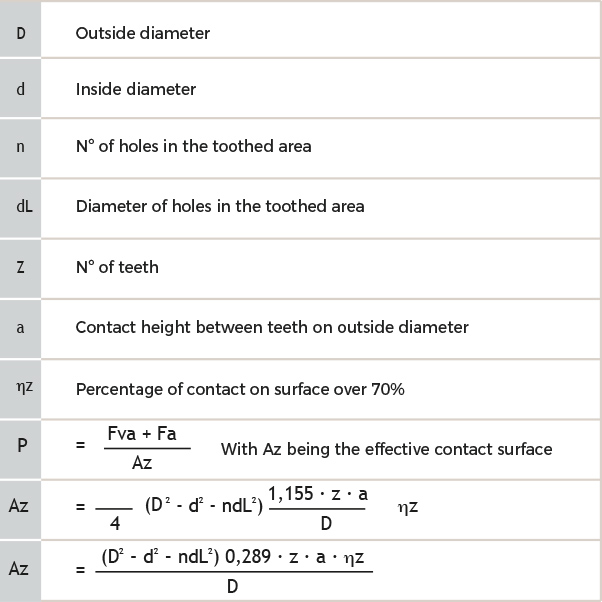

Pressure calculation

In a compression situation, with a suitable Fva load and with no transmission of force, this load is equally distributed on both faces on the tooth.

Therefore, there is no resulting bending stress. But when transmitting torque M, pressure rises on one face of the tooth and diminishes on the other. The maximum pressure is calculated as follows:

Pressure calculation

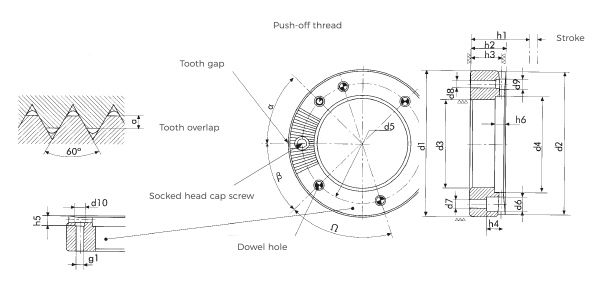

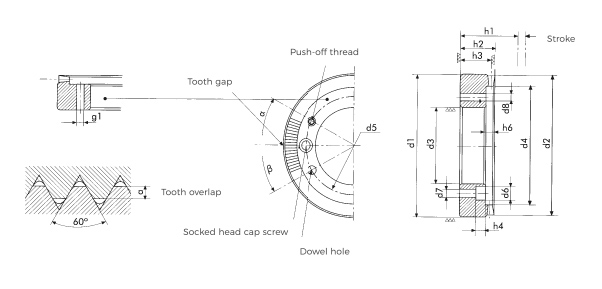

Technical table - Standard Series (mm).
